Unirapid

Female mono-joint

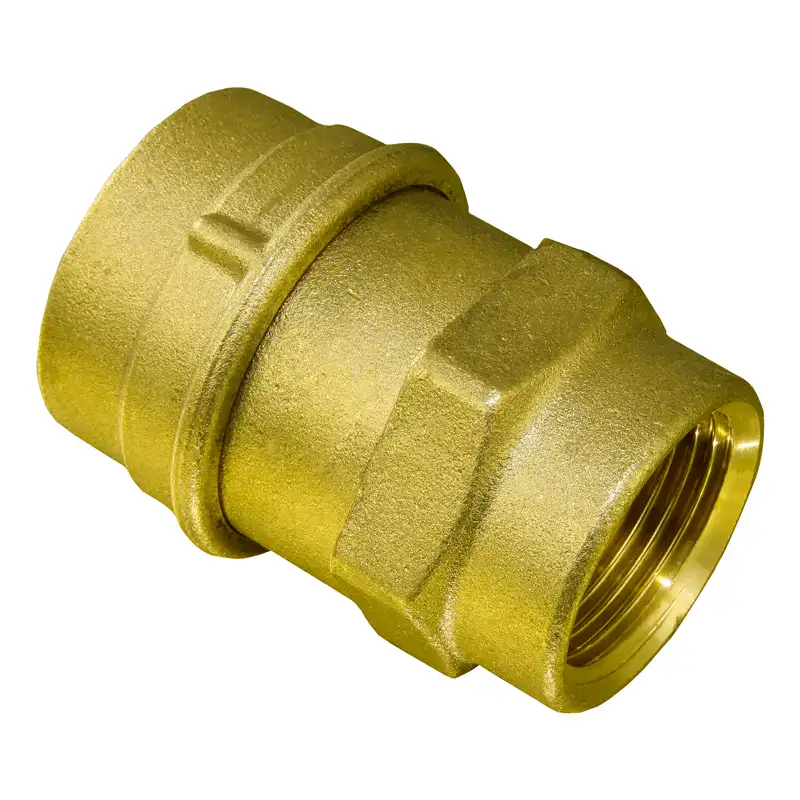

The UNIRAPID female fitting is made up of the following components:

N. 1 Hot moulded CW617N brass body
N. 1 Hot moulded CW617N brass ring-tightener ring nut
N. 1 Brass self-tightening conical ring CW614N derived from bar
N. 1 O-ring in nontoxic NBR 70 rubber. Compound suitable for contact with potable water approved: ACS No. 09 CLP LI 008 – TZW KTW D1 D2 of 19 Dec 2007 – NSF ANSI 61 N° IG770-01
N. 1 Collar gasket in nontoxic NBR FDA rubber. Compound suitable for the requirements of Ministerial Decree No. 174 of 06 Apr 04 for contact with potable water lab certified. CERISIE RP 644/2012

The female threading of our fittings is cylindrical, in compliance with standard UNI ISO 228.

Specifications

Technical characteristics

Swipe to see the full table

Code	Female threading diameter gas UNI 228	Nominal diameter threading pipe PE	A (mm)	B (mm)	C (mm)	Unit weight (Kg)
RF_AFE020	½"	Ø 20	35	54.5	37	0.160
RF_AFE025	¾"	Ø 25	42	60.5	41.5	0.220
RF_AFE032	1"	Ø 32	50	68.5	49	0.335
RF_AFE040	1"1/4	Ø 40	59	72	51	0.475
RF_AFE050	1"1/2	Ø 50	71	86.5	64	0.760
RF_AFE063	2"	Ø 63	87	90	67	1.040
RF_AFE075	2"1/2	Ø 75	100	99.5	72.5	1.660
RF_AFE090	3"	Ø 90	120	121	93	2.700
RF_AFE0110	4"	Ø 110	143	128.5	100.5	3.670
